Product Information
| Brand | Lloyds Spar Quarries |
|---|---|
| Product SKU | STORMCRATE55 |
Description
StormCrate55 modular cellular soakaway crates are used in storm water retention, attenuation and infiltration applications. The soakaway crates are designed to be easily stacked together to create a below ground storm… Read MoreProduct Specification
Product Description
StormCrate55 modular cellular soakaway crates are used in storm water retention, attenuation and infiltration applications. The soakaway crates are designed to be easily stacked together to create a below ground storm water holding tank or to allow the infiltration of storm water into the ground around them. The void created by the crates can then fill up with storm water during heavy rainfall conditions. The collected storm water then drains away slowly into the drainage system when the crate is used for attenuation, or, soaks away slowly into ground water table when the crate is used for infiltration.
Size: 600 x 1200 x 347mm
Volume Coverage: 0.25m3 (4 StormCrates per 1m³)
Capacity: Each crate has a capacity of 237.5L or 0.2375m3.
Key features:
- Modular Design – designed to be easily laid in a brick bond pattern.
- Easy Connection – fit quickly and simply together with four connectors and two sheer pins per crate.
- Quick & Easy to Install – at only 15.5kg per module, StormCrate55 are easily lifted by hand.
- High Performance Loading – have a load bearing design of up to 562kN per m2.
- Storm Water Management – steadily disperse high intensity storm water by infiltration or attenuation.
Applications:
- StormCrate55 soakaway crates provide a highly effective means of managing storm water, contributing to reducing the risk of flooding.

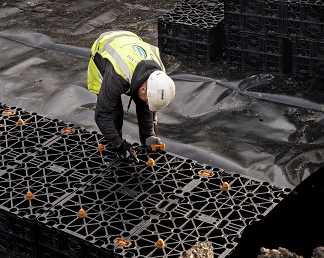

- Rainwater Infiltration: StormCrate55 can be wrapped in a geotextile which allows stored water to slowly seep into the surrounding ground and back into the water table.
- Rainwater Attenuation: another common practice is to surround StormCrate55 with an impermeable geomembrane to create a sealed underground tank. The outlet from this tank is then controlled to facilitate a slow release of the stored water back into the drainage system over a longer period.
Properties:
- Load bearing strength of 562kN per m2
- Designed for trafficked and untrafficked areas
- 95% void ratio
- Integrated inlet and outlet
- 100% recyclable
For technical data or installation guides, please refer to product downloads.
